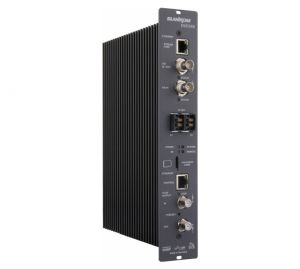

INFOSS Infokanalmanager SD-Card/ASI in DVB-C/Annex B

• DCS (digital calculated signal)-full digital system from generating through to RF
• micro SDHC card ≥ 4 Gbyte memory, externally chanceable, data internal via PC
• output signal loop trough
• HTML and/ or optional SNMP control
• Diverse mounting options (19", DIN rail, wall mounting)
• Power supply via SBL plug or via seperate hollow plug (SNT 001)
• files can be changed throughout the entire term
• generate 4 individual DVB Services to 1 DVB channel
• NIT static or dynamic in the SBL system

Function

• Player 4
• Video clip 16
• Playback infinite loop
• EPG entry 1x per Player
• Teletext 4 tables
• HbbTV link 1

Plug-in module

• Memory card micro SDHC, ≥4 Gbyte, class 10

Digital Modulator - DVB-C

• Output frequency range 45... 1006 MHz
• Symbol rate ≤ 7 MSps independently of players TS-Data rate
• QAM - Constellation 16; 32; 64; 128; 256
• MER > 45 dB

Digital Modulator - DVB-T (optional)

• FFT mode 2k
• Guard interval 1/32, 1/16, 1/8, 1/4
• Carrier mode QPSK, QAM 16, QAM 64
• Trellis 1/2, 2/3, 3/4, 5/6, 7/8
• Band width 5, 6, 7, 8 MHz
• MER > 40 dB

Digital Modulator - DVB-S (optional)

• Output frequency range 950...1006 MHz
• Symbol rate 0,1 ... 45 MSps
• Roll off 0,35; 0,25
• Trellis 1/2, 2/3, 3/4, 5/6, 7/8
• MER > 38 dB

ASI input (optional)

• Level 200...800 mVpp
• Data rate 270 Mbps
• Connector/ impedance BNC socket / 75 Ω
• ASI - Polarity normal/ inverted

IP streaming output (optional)

• 10/100 RJ45, Auto negotation, Auto crossover
• 8x streaming ports UDP/RTP
• SNMP 2022-2,3
• ARP, PING

Multiplexer (optional)

• pass & drop mode for external output

RF - Output

• Frequency range 45 ... 1006 MHz
• Tuning grid 1 kHz
• Max. Output level max. 85 dBµV (per channel)
• Sum level setting without loop: 76 ... 94 dBμV (1 dB steps)
• Sum level setting mit Loop: 62 ... 82 dBμV (1 dB steps)
• Attenuator 0...20 dB ( 0.5 dB steps)
• Channel allocation adjacent channel ability
• Connector/ impedance F socket, 75 Ω
• Return loss ≥ 18 dB 45 MHz, - 1.5 dB/ octave

Signal quality

• MER ≥ 45 dB
• Shoulder attenuation ≥ 53 dB
• Spurious 45...862 MHz ≥ 60 dB
• Frequency deviation max. 30 kHz
• Output level stability ± 0.5 dB

Operating parameters

• Weight ca. 1.200 g
• Temperature range -10 ... +55 °C
• Mounting vertical
• Dimensions (w x h x d) 45x262x184 mm
• Current consumption 1x SBL, 1x DC power jack (2.1mm)
• Operating Voltage 8... 14 VµDC, reserve polarity protected
• Power loss ca. 12 W

Delivery content

• 1 x Supply cable
• 1 x Ethernet cable
• 1 x F connection cable
• 1 x terminating resistor
• 1 x DIN rail clip
• 1 x Mounting kit
